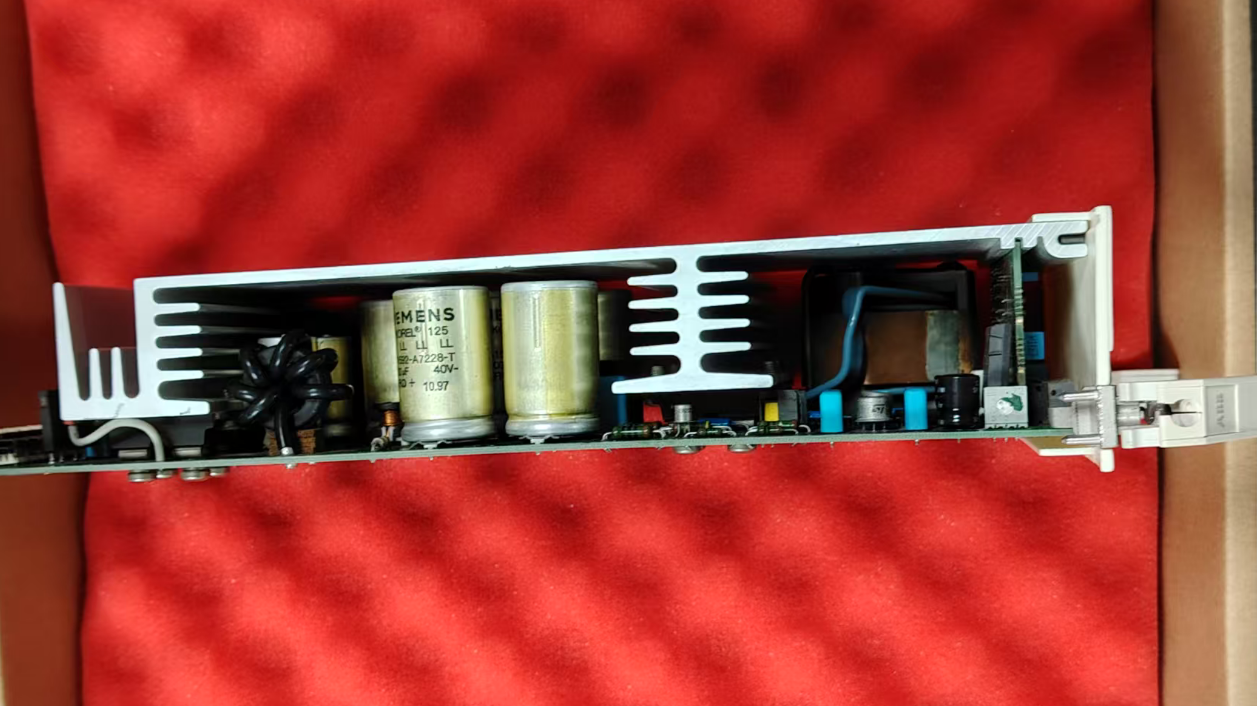

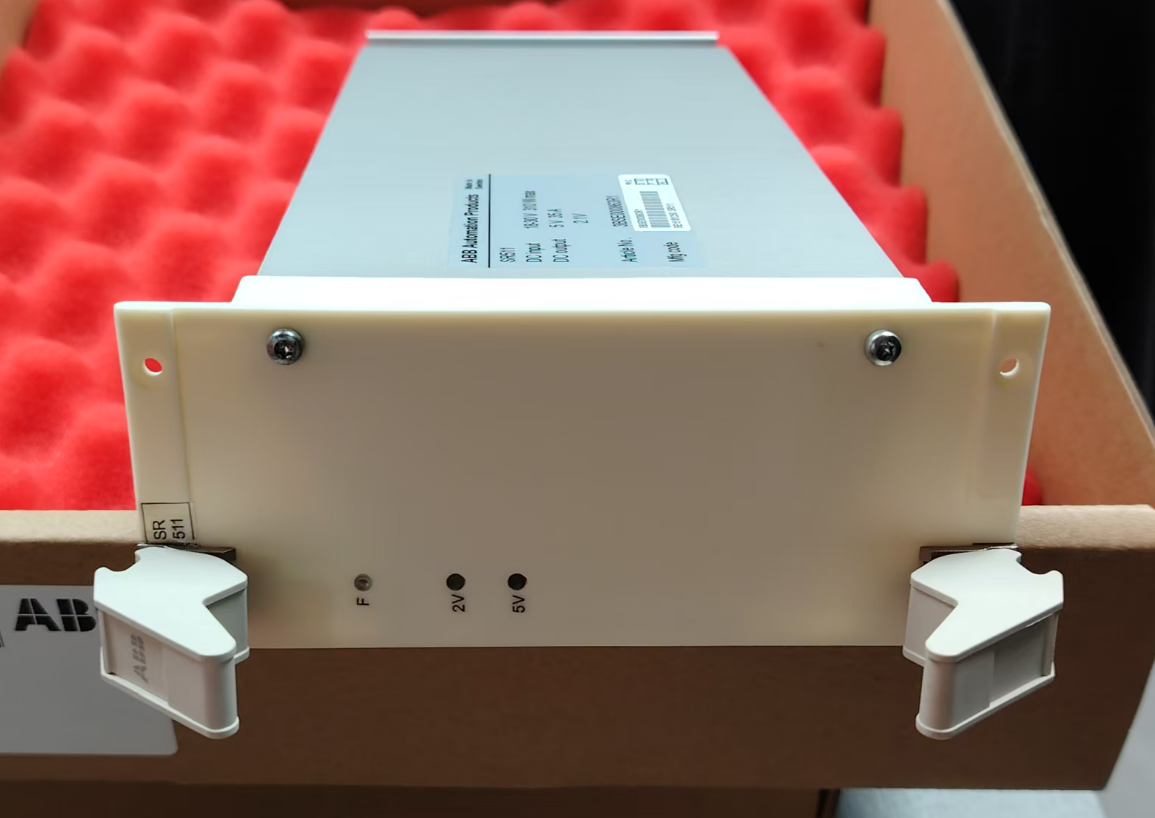

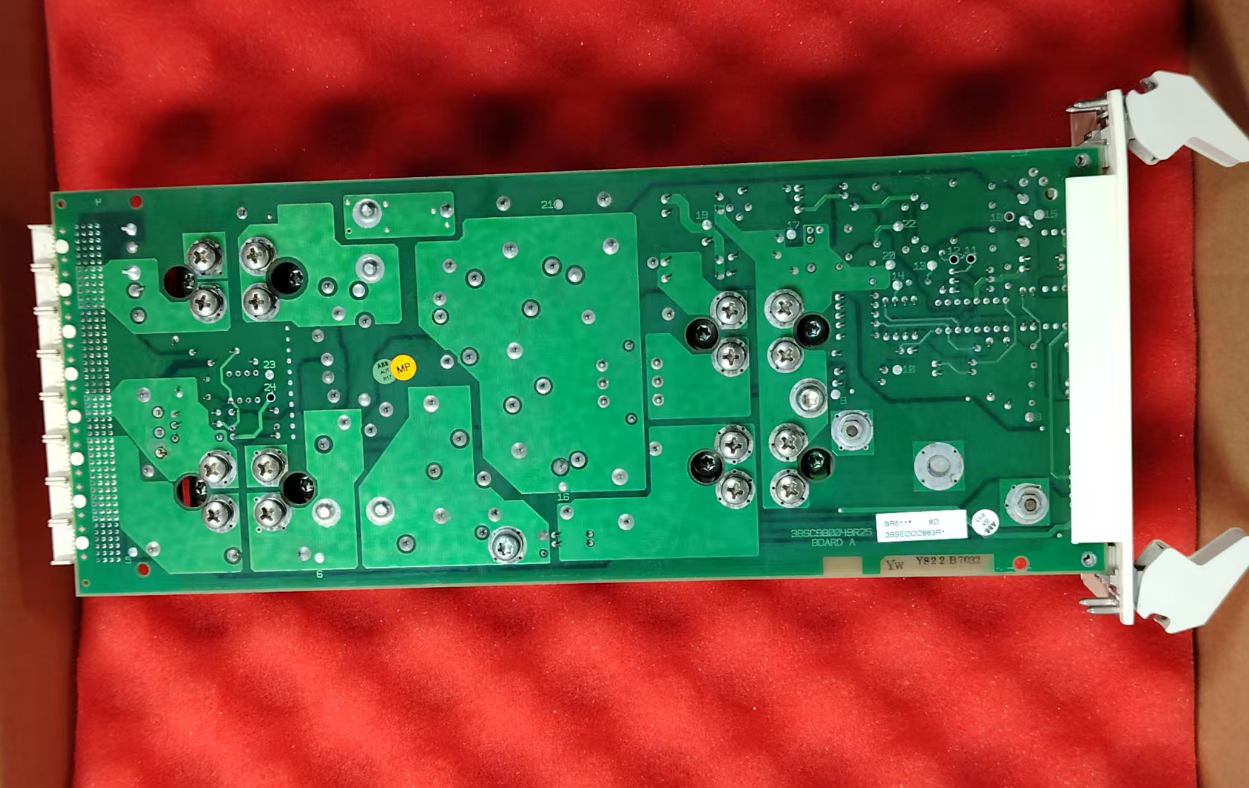

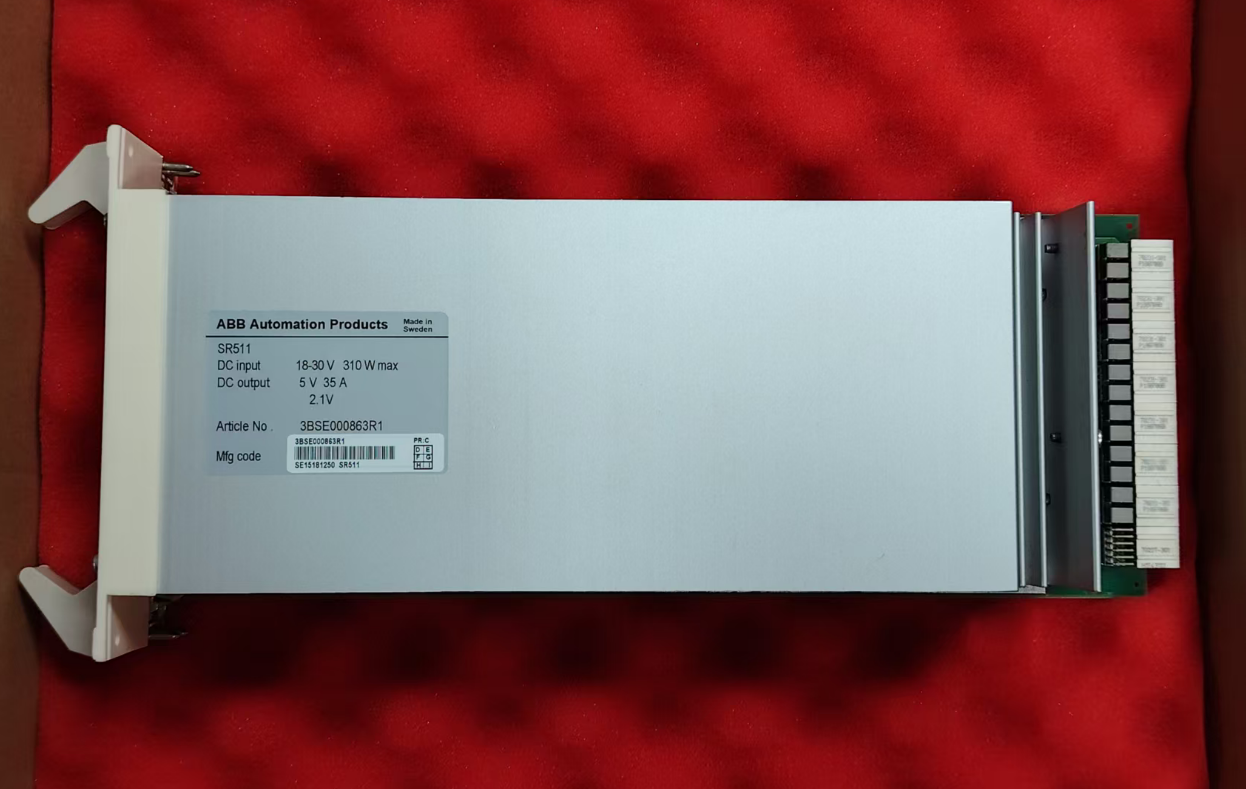

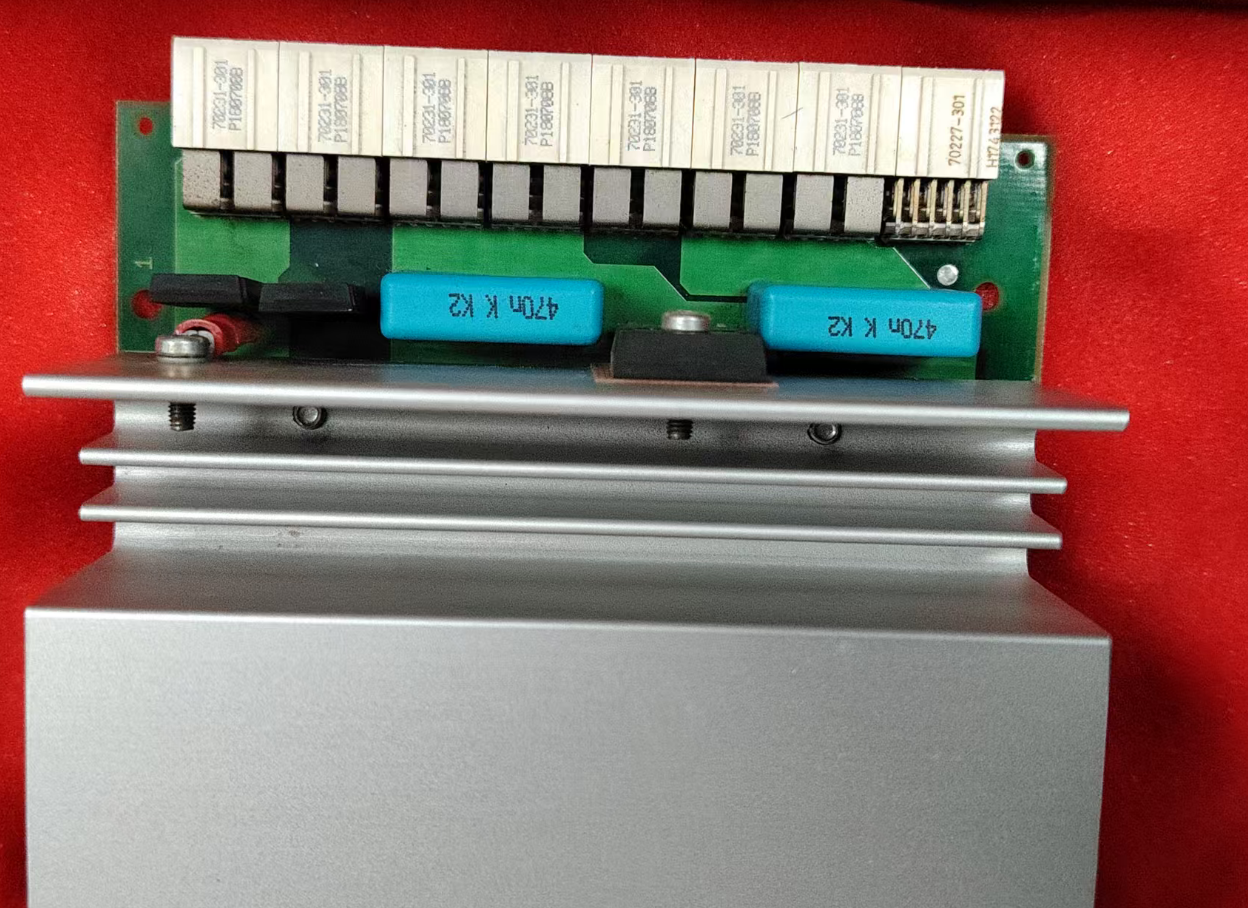

SR511 3BSE000863R1 ABB

  • SR511 3BSE000863R1 ABB
  • SR511 3BSE000863R1 ABB
  • SR511 3BSE000863R1 ABB
  • SR511 3BSE000863R1 ABB
  • SR511 3BSE000863R1 ABB
Lugar de origem Suécia
Marca ABB
Certificação Certificate of Origin
Número do modelo SR511 3BSE000863R1
Documento ABB SR511 3BSE000863R1.pdf
Quantidade de ordem mínima 1 unidade
Preço $1000
Detalhes da embalagem Embalagem original da caixa
Tempo de entrega 3-5 dias
Termos de pagamento T/T
Habilidade da fonte 1-99 unidades / 3-5 dias
Detalhes do produto
Marca ABB Número do módulo SR511 3BSE000863R1
Catálogo SR511 Regulador 24V/5V Preço de venda $1000
Doença Em estoque Origem Suécia
Tempo de espera 3-5 dias úteis Garantia 1 ano
Peso 1kg
Destacar

ABB SR511 control module

,

ABB 3BSE000863R1 module

,

ABB industrial automation module
Deixe um recado
Descrição de produto
SR511 3BSE000863R1 ABB
Product Overview

The ABB SR511 3BSE000863R1 is a 24V/5V power regulator designed specifically for industrial automation systems and serves as a key component of ABB's Advant OCS and S100 I/O systems.


The module's core function is to convert an unstable 24V DC input power supply into stable 5V DC (and 2.1V DC) output voltage required by the control system through precision DC/DC conversion and voltage regulation technology, thereby providing reliable and clean power supply to critical equipment such as CPU modules, communication modules, and I/O modules within the rack.


It is primarily used in S100 I/O racks or CPU racks for systems such as the ABB Advant Controller 110/450, Advant OCS, and MasterPiece 200. Manufactured in Sweden, this module is part of the ABB Advant controller series of power supply products.

Product Specifications
Brand Name ABB
Model CS513
Ordering Information 3BSE000435R1
Catalog Description SR511 Regulator 24V/5V
Gross Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 16cm x 16cm x 12cm
Country of Origin Sweden
HS Code 8537101190
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price $1000
Warranty 12 months
Lead Time 3-5 work days
Courier Partners DHL, UPS, TNT, FedEx and EMS
Technical Features
  • Product Type: 24V/5V Power Regulator (Switch-Mode Power Supply)
  • Input Voltage: 24V DC (typical), range 18-30V DC
  • Main Output Voltage: 5V DC
  • Auxiliary Output Voltage: 2.1V DC (for powering parallel bus terminals)
  • Power: 15W / Maximum Input Power 310W
  • Ripple and Noise < 100mVpp
  • Efficiency > 85%
  • Operating Temperature: -20°C to +60°C
  • Storage Temperature: -40°C to +85°C
  • Protection Rating: IP65
Case Study

On automated automotive production lines, the SR511 module supplies power to the production line control system. Previously, when the production line used non-redundant power modules, any failure would cause the line to stop immediately, resulting in an average of three hours of downtime per failure and significant financial losses. The introduction of the SR511 redundant power module has effectively prevented production interruptions caused by power supply failures.

SR511 power regulator module installation in industrial control cabinet
Installation Precautions
  • Ensure adequate ventilation space inside the cabinet: Maintain a ventilation gap of at least 20 mm above and below the module to prevent heat buildup and derating due to high temperatures
  • A fuse must be installed at the front end of the 24 VDC input; a 16 A industrial DC fuse is recommended
  • Installation of the unit without a protective enclosure is strictly prohibited in open-air, dusty, or corrosive gas environments; it must be housed in a sealed control cabinet
  • When configuring parallel redundancy with new and old modules, use only the same model (3BSE000863R1); mixing with other power supply models is prohibited
SR511 power regulator module wiring and installation diagram
Documentation

ABB SR511 3BSE000863R1.pdf
