CI185 VMD-185-020-AT-CA-S

Lugar de origem China
Marca Other
Certificação Certificate of Origin
Número do modelo CI185 VMD-185-020-AT-CA-S
Quantidade de ordem mínima 1 unidade
Preço $1500
Detalhes da embalagem Embalagem original da caixa
Tempo de entrega 3-5 dias
Termos de pagamento T/T
Habilidade da fonte 1-99 unidades / 3-5 dias
Detalhes do produto
Número do módulo CI185 Número do Pedido VMD-185-020-AT-CA-S
Doença Em estoque Peso 1kg
Tempo de espera 3-5 dias úteis Marca Outro
Origem China Preço de venda $ 1500
Garantia 1 ano
Deixe um recado
Descrição de produto
CI185 VMD-185-020-AT-CA-S
Product Overview

The CI185 VMD-185-020-AT-CA-S belongs to the CI185 series and is the standard-configuration accelerometer within that series. This model offers reliable performance, flexible configuration, and loop-powered operation, making it widely used for vibration monitoring in rotating machinery such as fans, blowers, compressors, and pumps.

Designed specifically for PLC interfaces, this device converts mechanical vibration signals into a standard 4-20 mA current output, with the output value being proportional to the root mean square (RMS) velocity of the vibration. Its loop-powered operation, standard 4-20 mA output, wide operating temperature range, and stainless steel IP67-rated housing make it an ideal choice for condition monitoring and predictive maintenance of industrial equipment.

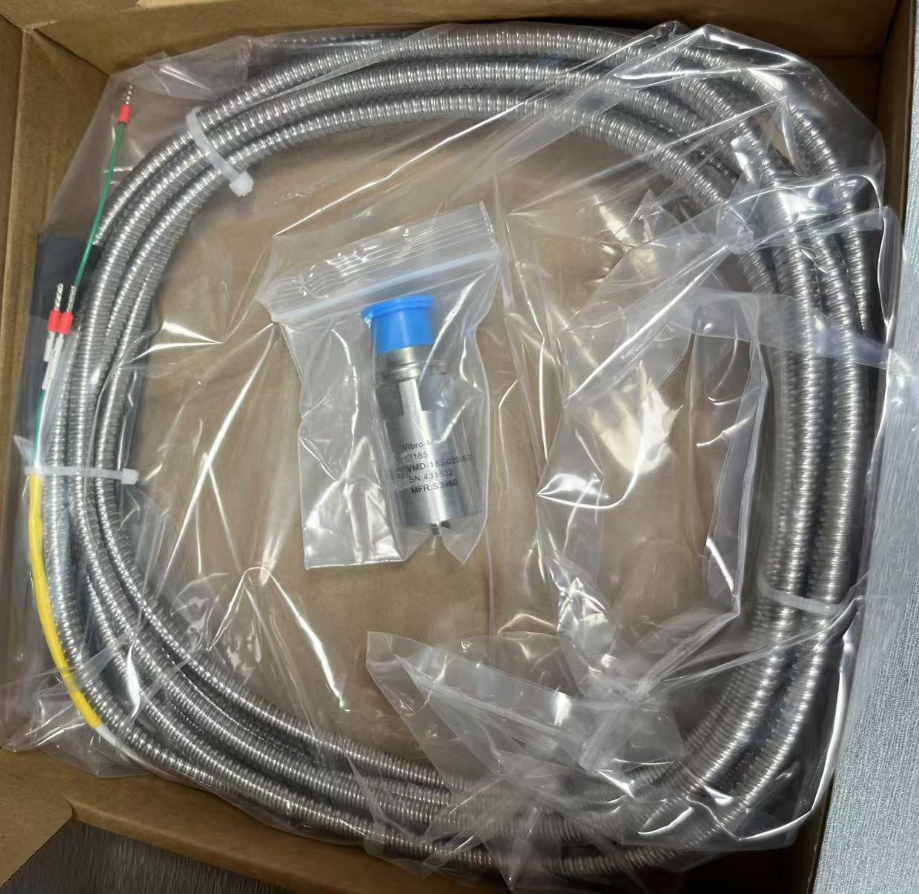

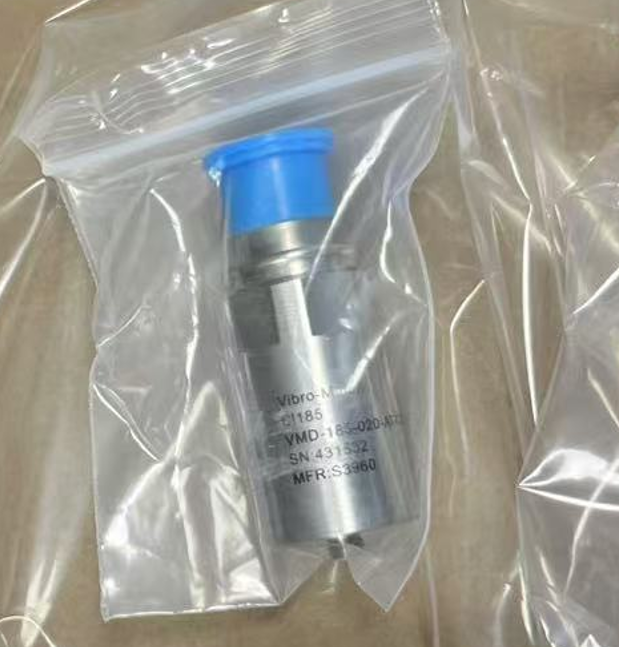

CI185 VMD-185-020-AT-CA-S Accelerometer Product Image
Applications & Environments

Suitable Environments: This sensor is specifically designed for harsh industrial environments, with an IP67 protection rating, and can withstand oil, dust, and humid conditions. Its wide operating temperature range (-30 to 90°C) makes it suitable for most factory workshops.

Typical Applications:

  • Fans: Monitors bearing vibration in large industrial fans to prevent blade imbalance
  • Blowers: Monitors the operating status of airflow equipment
  • Compressors: Detects abnormal vibrations in compressor units to prevent mechanical failures
  • Pumps: Used for predictive maintenance of equipment such as centrifugal pumps
Product Specifications
Brand NameOther
ModelCI185
Ordering InformationVMD-185-020-AT-CA-S
CatalogAcceleration sensor
Gross Weight2.2 lbs / 35.2 oz / 1kg
Packing Size16cm x 16cm x 12cm
Country of OriginChina
HS Code8537101190
Lead TimeIn Stock
Shipping PortXiamen
PaymentT/T
Sales Price$1500
Warranty12 months
Processing Time3-5 work days
Courier PartnersDHL, UPS, TNT, FedEx and EMS
Technical Features
  • Operating Temp Range: -30 to 90 ºC
  • Output Current: 4-20mA DC proportional to RMS velocity (mm/s)
  • Standard Cable length: 5 meters armoured PTFE for AT and EX versions
  • Maximum Cable length: 1000 meter, for EX version see ATX009
  • Dynamic Range: 50g peak
  • Mounted Resonance: 5 kHz min
  • Sealing: IP67
  • Case Material: Stainless steel
  • Supply Voltage: 12-32 Volts DC (4-20 mA) Loop powered
  • Transverse Sensitivity: Less than 5%
CI185 Product Pairing and Selection Diagram
Frequently Asked Questions

In which directions can the sensor measure vibration?
The CI185 accelerometer can detect motion in the X, Y, and Z directions and analyze velocity, frequency, and amplitude.

If I need a connector instead of a cable, which model should I choose?
If you need the top-connector version, you should choose the model with the code "CT" (e.g., VMD-185-xxx-CT-CA-S).

What should I keep in mind during installation?
Install on a finely machined surface. We recommend applying silicone grease and tightening to the recommended torque of 8 Nm. In humid environments, the connector area must be sealed.

What is the warranty period?
Standard industrial warranty: 12 months; with proper installation and no overloading, the product has a service life of 5-10 years.
